A GNSS integration documentation package is sufficient to begin evaluation when it identifies the exact item under review, states the available published facts, and makes the unresolved integration questions visible. It is not sufficient merely because a data sheet exists. Before supplier approval, an engineering and procurement team should be able to connect the model, document revision, platform boundary, acceptance conditions and remaining clarifications without filling gaps by assumption.
This guide is for engineering leads, system integrators and technical buyers reviewing a GNSS product or integration supplier. It does not prescribe one universal document set or claim that every project needs the same material. Instead, it provides a fact-safe way to decide what is available now, what should be requested before evaluation and what can be confirmed during integration.
First decide whether the project should begin with a published product evaluation or a Custom/OEM discussion. The published-product versus Custom/OEM decision guide explains that route choice. This article addresses the next question: does the supplier documentation package support a controlled technical review and a conditional approval decision?
A data sheet is not the same as an integration documentation package
A data sheet is often the first useful document. It can identify a model, product role and selected published fields. That makes it valuable for early screening. It does not automatically establish the installation, RF path, power boundary, interface definition, configuration version or platform-specific conditions needed to approve an integration.
An integration documentation package is the collection of identified material used to connect a supplier item to a real project boundary. Its exact contents depend on the project. At minimum, the review should make it possible to answer three practical questions:
- What is being evaluated? Record the supplier, formal model, document name, revision or release date, and the specific hardware, firmware or configuration identity where that information is available.
- What can the current documents establish? Separate published facts from assumptions and project conditions that still require confirmation.
- What decision can be made now? Continue with a defined evaluation, request focused clarification, or pause approval because a decision-critical boundary remains unidentifiable.
This distinction prevents two common errors: treating an attractive product page as a complete integration definition, and rejecting a candidate simply because every project-specific drawing is not public. Missing material is a review finding. It becomes a stop condition only when it prevents a responsible decision at the current stage.
Use a staged documentation review framework
Start with the decision that the team needs to make, then place each document category into the correct stage. The table below is a general working framework, not an international standard or a promise that a supplier will provide every item before an RFQ.
| Documentation category | Available now | Request before evaluation | Confirm during integration |
|---|---|---|---|
| Item identity and scope | Formal model, product role, published revision or date where available. | Clarify the exact configuration being quoted or sampled and the document set that applies to it. | Record the as-evaluated configuration and any approved substitutions. |
| Mechanical and installation | Published dimensions, mass or installation information only when explicitly listed. | Ask for the drawing, mounting boundary or space assumptions needed for the platform review. | Confirm final location, orientation, fastening, service access and cable routing against the actual platform. |
| RF and antenna path | Published RF or GNSS information only in its documented scope. | Identify receiver boundary, cable path, connector assumptions and any questions that decide compatibility. | Confirm the installed RF path, antenna relationship and configuration used for sample evaluation. |
| Electrical, power and interfaces | Use only listed power, interface or signal facts. | Request the interface definition, power boundary and configuration information that the review cannot infer. | Record the verified integration connections and software or firmware dependencies. |
| Environment and operating context | Use stated limits only when published for the exact item. | Identify project conditions that may affect suitability and ask which items require confirmation. | Document the agreed evaluation conditions and any project-specific constraints. |
| Version and change record | Capture document title, revision, issue date and source URL or delivery reference. | Ask whether later revisions, configuration notes or known changes affect the item under review. | Maintain an approval record that links the product identity, document set, conditions and change triggers. |
A document does not need to be public to be useful in a controlled supplier review. Conversely, a public document does not remove the need to identify its revision and relationship to the item being evaluated.
Review the technical categories without inferring missing facts
Mechanical, installation and service boundary
Ask whether the material identifies the physical item well enough to assess the available platform space and installation concept. A product image is not a mounting drawing. A headline dimension is not an installation approval. If the exact mounting boundary, access requirement or cable exit direction decides the next step, request that clarification before treating the candidate as technically approved.
RF path and antenna relationship
For a GNSS integration review, record what the current material actually states about the antenna, RF path and receiver relationship. Do not borrow a connector, cable, bias or signal assumption from another model. Public integration manuals from established GNSS manufacturers show why RF, antenna supply, layout and placement details can matter in a system review; the relevant detail must still be confirmed for the particular item and project.[1]
Electrical, power and data interfaces
Use the review to identify the ownership boundary: which facts belong to the supplier item, which belong to the receiver, and which belong to the platform. The team does not need to invent an interface matrix before contacting a supplier. It does need to name the interface questions that influence selection, sample evaluation or test setup.
Environment and operating conditions
Separate a known project condition from a published product limit. If the project has vibration, temperature, ingress, electromagnetic or installation constraints, list them as project inputs. Only treat a limit as a supplier fact if the exact document for the exact item states it. The U.S. Coast Guard Navigation Center similarly notes that GNSS discrepancies can arise from integration factors such as host vehicles, embedded systems, power, antenna orientation and output formats.[2]
Check version alignment before relying on a document
Version control is not administrative decoration. A review can become misleading when a drawing, data sheet, sample label and configuration note refer to different item identities or revisions. Before advancing an approval, keep a compact record that links:
- supplier name and formal model;
- document title, revision or issue date, and the source received;
- sample or evaluation-unit identity when one exists;
- hardware, firmware or configuration version when the project depends on it;
- open questions, their owner and the decision they affect; and
- the condition under which the team may continue, request clarification or pause.
NASA’s systems-engineering guidance treats configuration management as identifying items, controlling changes and maintaining the status of configuration documentation. That is useful general context for a supplier approval record, not a requirement that a commercial GNSS project adopt NASA’s process.[3]
Watch for documentation warning signs
The following signals do not automatically mean a supplier is unsuitable. They indicate that the review should slow down and identify the missing decision boundary.
- Ambiguous item identity: the model name is present but the quoted or sampled configuration is not identified.
- Conflicting revisions: two documents describe the same item differently without a clear revision relationship.
- Unbounded drawings: a visual shows an item, but the document does not state whether it applies to the product being evaluated.
- Undefined interface words: terms such as “compatible,” “supports,” or “integrates” appear without identifying the receiver, RF or platform boundary.
- Approval without conditions: a team is asked to approve a supplier before it records the assumptions and unresolved project-dependent questions.

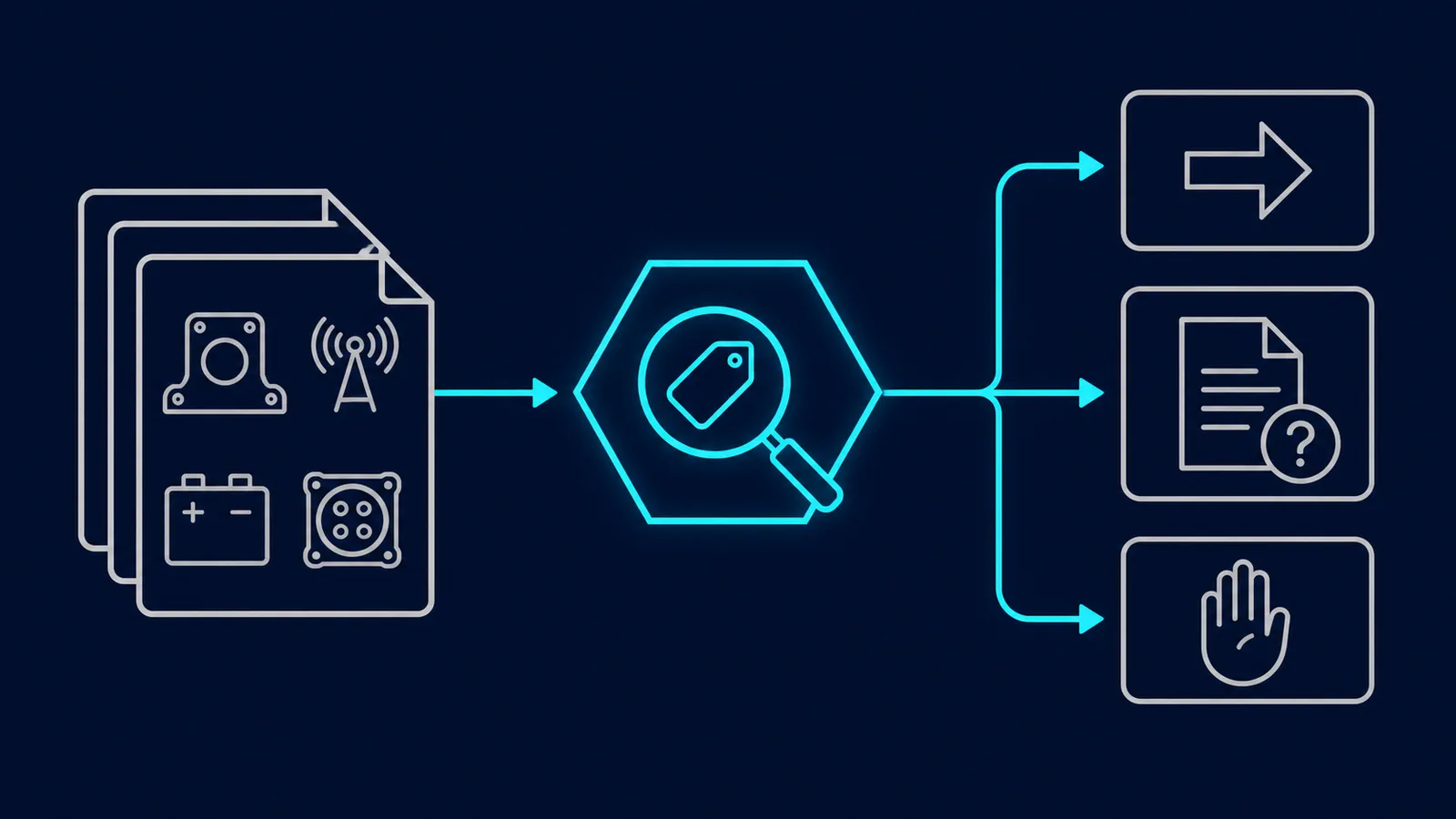

Choose the next action: continue, request clarification or pause
Continue with evaluation when the package identifies the item, supports the decision currently being made and makes the remaining conditions explicit. This may be enough to compare a published product such as the RN-8AT-FULL-KGR-34V or an anti-jamming and anti-spoofing system such as RN2512-AJS-16CH-DPA as documented model records. It is not an approval of unlisted capabilities.
Request clarification when the missing material is specific and the team can state why it matters. A focused request is more useful than “send all documents”: identify the model, project boundary, missing item, decision affected and desired revision or format.
Pause supplier approval when the missing or conflicting material prevents the team from identifying what is being approved, what conditions apply or how the sample/evaluation result would relate to a production configuration. A pause is a controlled decision, not an accusation or a negative performance conclusion.
Create a supplier approval record that survives change
A short approval record should be understandable by procurement, engineering and the next reviewer. Record the model, reviewed documents, revision references, approval scope, known limitations, open items, owner and change triggers. If a document revision, hardware identity, RF path, receiver boundary or installation condition changes, the record should tell the team whether a new review is required.
This approach connects directly to the GNSS configuration change review guide. It also avoids treating a one-time supplier comparison as permanent evidence after the configuration changes.
Next step: move from documentation review to a documented discussion
Use the ResiNav product directory to identify published product families and model pages that may be relevant to an initial review. For platform context, start with Applications. When public product information cannot close a project-specific integration question, use Custom OEM GNSS Integration to organize the discussion. Then submit the known facts and specific open questions through a GNSS engineering RFQ; inputs can be completed in stages.
For more engineering guides, visit GNSS Engineering Insights.
Frequently asked questions
Is a data sheet enough to approve a GNSS supplier?
Usually not by itself. A data sheet can support early screening, but the approval decision should match the project stage and identify any mechanical, RF, electrical, interface, installation, configuration or version questions that remain decision-critical.
Do all suppliers need to provide the same documentation package?
No. The needed material depends on the item, platform, project stage and decision being made. The useful discipline is to identify the item, document what is known and request only the material needed to resolve the current decision boundary.
When should missing documentation pause approval?
Pause when the team cannot identify the configuration under review, cannot state the conditions of approval, or cannot relate a sample or evaluation result to the item that would later be supplied. Otherwise, record the gap and request focused clarification.
How is this different from an RFQ checklist?
An RFQ checklist helps the buyer prepare project inputs. This guide evaluates the supplier-side documentation package after a route has been chosen, so the team can decide whether to proceed, request clarification or pause an approval.
