GNSS Anti-Jamming Application Solutions
GNSS interference can affect positioning continuity, receiver availability, automated control and system integration. ResiNav presents application scenarios for engineering review without overstating safety, performance or deployment outcomes.
Scope: lawful civilian and commercial application scenarios for engineering review. The image is conceptual and does not represent a customer deployment, certification or performance result.
SYSTEM ARCHITECTURE FLOW
From GNSS signal to application output
Use this generic engineering flow to clarify interfaces and review points before selecting a candidate configuration.
01
GNSS antenna
Signal acquisition, mounting position and operating environment.
02
Receiver / processing
Receiver interfaces, channels and platform integration constraints.
03
Mitigation review
Interference conditions and engineering review requirements.
04
Navigation platform
Controller, bridge, automation or customer-system handoff.
05
Application output
Navigation, survey, control or documented data output.
Conceptual engineering reference — subject to engineering review.

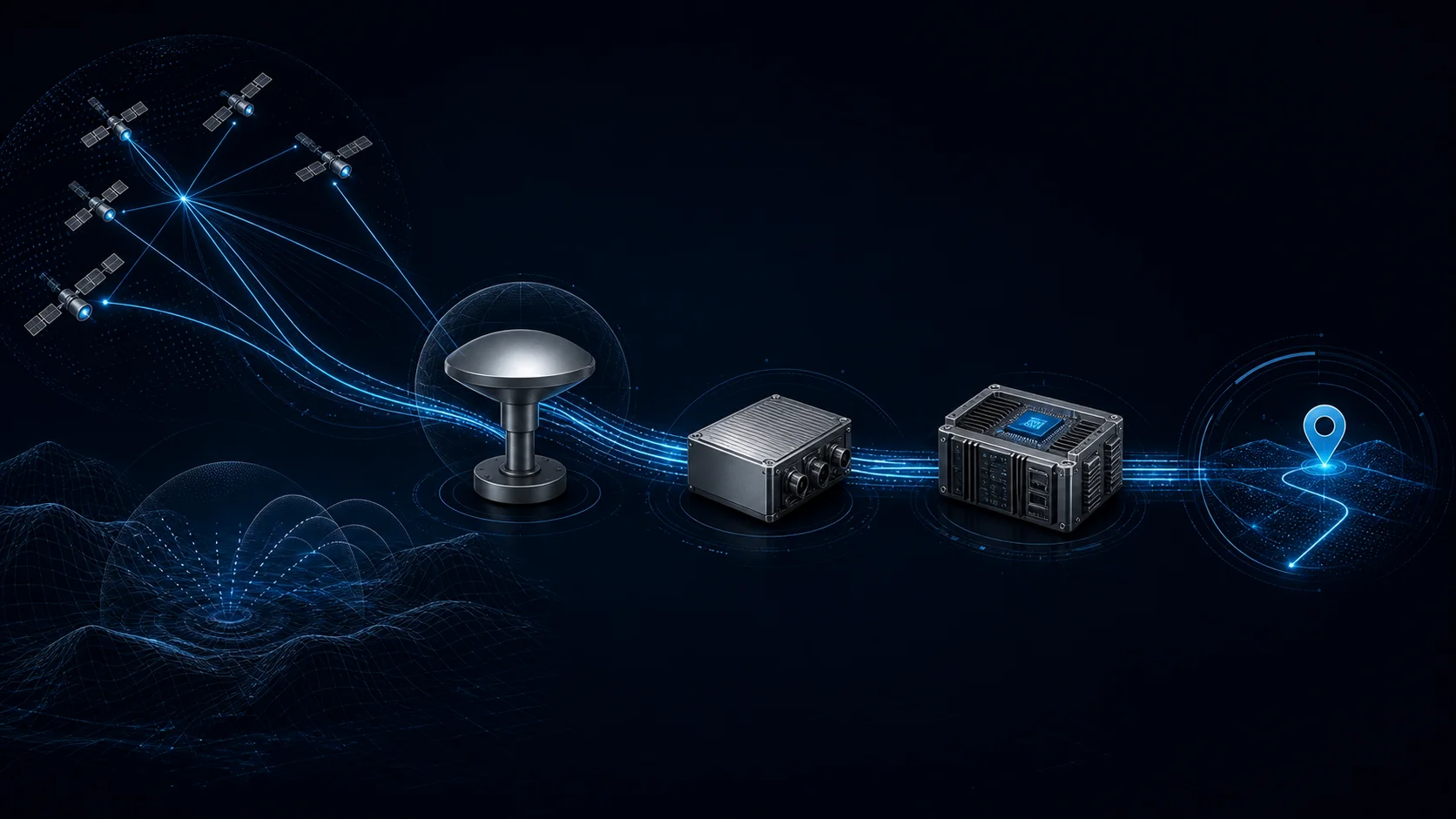

GNSS integration model
Integration model: use the map to document signal environment, antenna placement, receiver interfaces, platform control, frequency bands, channel and array requirements. All suitability decisions remain subject to engineering review.
GNSS anti-jamming application solutions
Applications Hub scenarios are conceptual references for commercial and industrial platform integration. Confirm the actual receiver, antenna, installation, power, data and environmental requirements before an RFQ.
Conceptual application illustration — subject to engineering review.
Application engineering entry points
Vehicle & Autonomous Systems
Vehicle GNSS integration guidance for dynamic platforms. Precision agriculture and comparable vehicle contexts should use this guide as an engineering starting point.
Engineering & Mining Vehicles
Engineering and mining platforms with installation, vibration, cable-routing and operating-environment review requirements.
Commercial Marine & Survey Vessels
Commercial marine, survey and coastal platforms with deck, grounding, cabling and multipath considerations.
Industrial Robotics & Automation
Industrial and outdoor automation systems requiring GNSS, controller and data-output integration review.
Custom OEM GNSS Integration
OEM, UAV, aerospace, infrastructure-monitoring and other purpose-built platforms requiring receiver, enclosure, interface, power and installation review.
Selection workflow
- Define the operating environment.
- Identify receiver and constellation requirements.
- Review element and channel architecture.
- Confirm mounting and interface constraints.
- Request an engineering review.
Application review enquiry
Include platform type, application, receiver architecture, installation constraints, quantity, target schedule and destination region. Final suitability must be confirmed against verified product data and system requirements.
